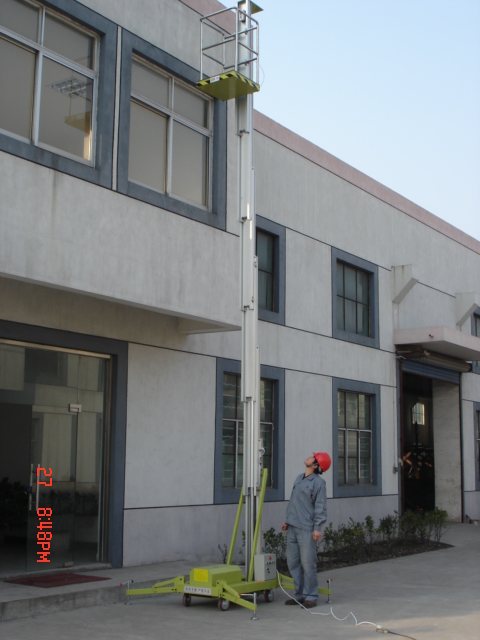

Scissor aerial worki… | Aluminum alloy aerial work platform refers to the main structure of the new aluminum alloy profiles of a high-altitude operations machinery. (1) the appearance of new, lighter weight. (2) profiles with good guidance, so that the lifting process more stable and reliable. (3) minimal impact on the surrounding environment, easy to maintain. |
Aluminum alloy aerial work platform | |||||||||
Product Name | Model | Platform Maximum Height | Platform Maximum Operating Height | Rated | Platform Size | Voltage | Power | Machine | Dimensions |
Load | Self-respect | ||||||||
Single mast | GTWY4-100 | 4 | 5.7 | 125 | 0.6*0.55 | AC220/50HZ | 0.75 | 185 | 1.05*0.88*1.70 |
GTWY6-100 | 6 | 7.7 | 125 | 0.6*0.55 | AC220/50HZ | 0.75 | 210 | 1.20*0.88*1.70 | |
GTWY8-100 | 8 | 9.7 | 125 | 0.6*0.55 | AC220/50HZ | 0.75 | 250 | 1.20*0.88*1.98 | |
GTWY9-100 | 9 | 10.7 | 125 | 0.6*0.55 | AC220/50HZ | 0.75 | 280 | 1.25*0.88*1.98 | |
Double mast | GTWY6-200S | 6 | 7.7 | 200 | 1.36*0.6 | AC220/50HZ | 1.5 | 320 | 1.48*0.9*2.06 |
GTWY7-200S | 7 | 8.7 | 200 | 1.36*0.60 | AC220/50HZ | 1.5 | 335 | 1.48*0.9*2.06 | |
GTWY8-200S | 8 | 9.7 | 200 | 1.36*0.60 | AC220/50HZ | 1.5 | 385 | 1.48*0.9*2.06 | |
GTWY9-200S | 9 | 10.7 | 200 | 1.36*0.60 | AC220/50HZ | 1.5 | 450 | 1.48*0.9*2.06 | |
GTWY10-200S | 10 | 11.7 | 200 | 1.36*0.60 | AC220/50HZ | 1.5 | 490 | 1.48*0.9*2.06 | |
GTWY11-200S | 11 | 12.7 | 200 | 1.46*0.60 | AC220/50HZ | 1.5 | 505 | 1.58*0.9*2.06 | |
GTWY12-200S | 12 | 13.7 | 200 | 1.46*0.60 | AC220/50HZ | 1.5 | 560 | 1.58*0.9*2.06 | |
Three mast | GTWY13-200S | 13 | 14.7 | 200 | 1.41*0.80 | AC220/50HZ | 1.5 | 930 | 1.70*1.13*2.48 |
GTWY14-200S | 14 | 15.7 | 200 | 1.41*0.80 | AC220/50HZ | 1.5 | 980 | 1.70*1.13*2.48 | |
Multi- mast | GTWY16-160 | 16 | 17.7 | 160 | 1.48*0.80 | AC220/50HZ | 1.5/0.75 | 1400 | 2.26*1.2*2.08 |
GTWY18-160 | 18 | 19.7 | 160 | 1.48*0.80 | AC220/50HZ | 1.5/0.75 | 1500 | 2.26*1.2*2.18 | |
